| Color |
 |
| Green, Red |
|
| Applications |
|
| Welding machines and cutting devices and other industrial appliances |
|
| Construction |
|

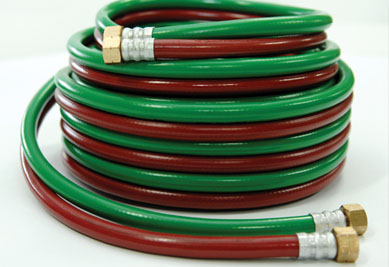

Features two attached hoses
Tubing reinforced with polyester yarn
High pressure PVC blend hoses with abrasion resistant ribbed covers |
|
| Features and Benefits |
|
Abrasion resistant ribbed covers
Easy handling, lightweight and flexible
Kink resistant
Resistant to aging and weather checking |
|
|
| Specification : TGH |
 |
Nominal Size
(inch) |
I.D.
(mm) |
O.D.
(mm) |
Pressure (at 10˚C) |
Standard Length
(m/coil) |
Working
(kg/cm²) |
Bursting
(kg/cm²) |
| 5 |
5 |
12 |
10 |
80 |
50, 100 |
| 8 |
8 |
15 |
10 |
80 |
50, 100 |
|
|
|
|
|
|
|
