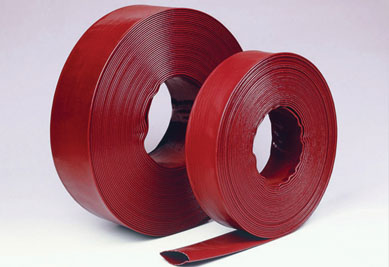

Heavy Duty PVC Water Discharge Hose : LF-H
Color
Brick red
Applications
Construction, mining and civil engineering
Agricultural, irrigation and drainage
Water supply for general purpose applications
Construction
3 Ply Polyester yarns
PVC tube and cover are extruded simultaneously to prevent separation
Features and Benefits
Smooth tube provides minimal flow resistance
Lightweight and easy handling
Flat coils for easy storage
Weatherproof
Specification : LF-H (Heavy Duty)
Nominal Size
(inch)
I.D
(mm)
Wall Thickness
(mm)
Pressure
Approx. Weight
(kg/coil)
Standard Length
(m/coil)
Working
(kg/cm²)
Bursting
(kg/cm²)
1 1/2
40±2
1.70±0.2
7
21
30
100
2
52±2
1.70±0.2
7
21
36
100
2 1/2
65±2
1.80±0.2
7
21
48
100
3
77±2
1.90±0.2
6
18
65
100
4
103±3
2.00±0.3
6
18
90
100
5
128±3
2.10±0.3
5
15
105
100
6
153±3
2.20±0.3
5
15
130
100
8
207±3
2.50±0.3
5
15
200
100

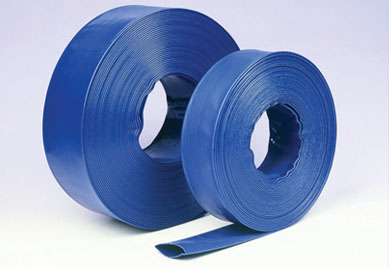

Medium Duty PVC Water Discharge Hose : LF-M
Color
Blue
Applications
Agricultural, irrigation and drainage
Construction, mining and civil engineering
Water supply for general purpose applications
Construction
3 Ply Polyester yarns
PVC tube and cover are extruded simultaneously to prevent separation
Features and Benefits
Smooth tube provides minimal flow resistance
Lightweight and easy handling
Flat coils for easy storage
Weatherproof
Specification : LF-H (Medium duty)
Nominal Size
(inch)
I.D
(mm)
Wall Thickness
(mm)
Pressure
Approx. Weight
(kg/coil)
Standard Length
(m/coil)
Working
(kg/cm²)
Bursting
(kg/cm²)
1 1/2
40±2
1.45±0.3
5.0
15.0
21
100
2
52±2
1.45±0.3
4.5
13.5
27
100
2 1/2
65±2
1.45±0.3
4.0
12.0
36
100
3
77±2
1.50±0.3
4.0
12.0
44
100
4
103±3
1.55±0.4
4.0
12.0
58
100
5
128±3
1.75±0.4
3.0
9.0
90
100
6
153±3
1.80±0.4
2.5
7.5
104
100
8
207±4
2.30±0.5
2.0
6.0
165
100

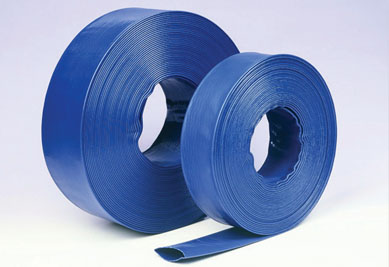

Light Duty PVC Water Discharge Hose : LF-LW
Color
Blue
Applications
Agricultural, irrigation and drainage
Construction, mining and civil engineering
Water supply for general purpose applications
Construction
3 Ply Polyester yarns
PVC tube and cover are extruded simultaneously to prevent separation
Features and Benefits
Smooth tube provides minimal flow resistance
Lightweight and easy handling
Flat coils for easy storage
Weatherproof
Specification : LF-LW (Light duty)
Nominal Size
(inch)
I.D.
(mm)
Wall Thickness
(mm)
Pressure
Approx. Weight
(kg/coil)
Standard Length
(m/coil)
Working
(kg/cm²)
Bursting
(kg/cm²)
1 1/2
40.0±2
1.20±0.3
4.0
12.0
18
100
2
52.0±2
1.20±0.3
4.0
12.0
24
100
2 1/2
65.0±2
1.30±0.3
3.5
10.5
32
100
3
77.0±2
1.35±0.3
3.0
9.0
38
100
4
103.0±2
1.35±0.4
3.0
9.0
50
100
5
128.0±2
1.60±0.4
2.5
7.5
75
100
6
153.0±2
1.60±0.4
2.0
6.0
90
100
