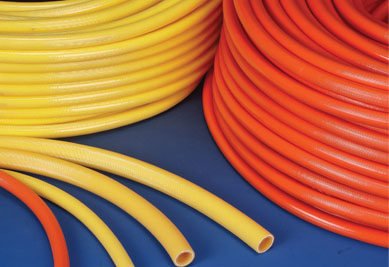

PVC power spray hose : SPH
Color
Yellow
Applications
Agricultural, weed, tree and pest control spraying applications

Water, air and water-soluble chemical applications in industry and construction

Construction
High pressure PVC blend hoses with abrasion resistant ribbed covers
Tubing reinforced with polyester yarn braid in full coverage
Features and Benefits
Abrasion resistant ribbed covers
Resistant to aging and weather checking
Easy handling, lightweight and flexible
Kink resistant
Resistant to fertilizers and most pesticides
No swelling phenomenon
Specification : SPH
Nominal Size
(inch)
I.D.
(mm)
O.D.
(mm)
Pressure (10¢ªC) Standard Length
(m/coil)
Working
(kg/cm²)
Bursting
(kg/cm²)
6.5 6.5 12.5 50 160 100
7.0 7.0 13.0 50 160 100
7.5 7.5 13.5 50 160 100
8.5 8.5 14.5 40 150 100
10.0 10.0 16.5 40 150 100
13.0 13.0 20.5 40 150 100
16.0 16.0 25.0 30 120 100
19.0 19.0 29.5 30 120 50
25.0 25.0 35.0 20 85 50
