| Color |
 |
| Navy blue |
|
| Applications |
|
Pneumatic tools, compressors, and other industrial appliances
Engine components |
|
| Construction |
|

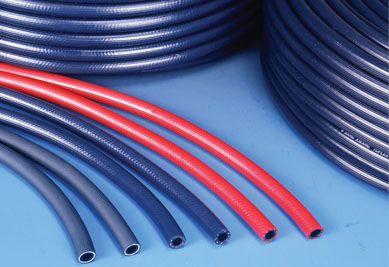

| PVC tube and cover reinforced with high tensile polyester yarn |
|
| Features and Benefits |
|
Resistant to aging and weather checking
Easy handling, lightweight and flexible
Smooth inside for minimal flow resistance
Resistant to atmospheric agents and to most chemicals
No swelling phenomenon |
|
|
| Specification : AH |
 |
Nominal Size
(inch) |
I.D.
(mm) |
O.D.
(mm) |
Pressure (10˚C) |
Standard Length
(m/coil) |
Working
(kg/cm²) |
Bursting
(kg/cm²) |
| 6.5 |
6.5 |
12.5 |
50 |
160 |
100 |
| 7.0 |
7.0 |
13.0 |
50 |
160 |
100 |
| 7.5 |
7.5 |
13.5 |
50 |
160 |
100 |
| 8.5 |
8.5 |
14.5 |
40 |
150 |
100 |
| 10.0 |
10.0 |
16.5 |
40 |
150 |
100 |
| 13.0 |
13.0 |
20.5 |
40 |
150 |
100 |
| 16.0 |
16.0 |
25.0 |
30 |
120 |
100 |
| 19.0 |
19.0 |
29.5 |
30 |
120 |
50 |
| 25.0 |
25.0 |
35.0 |
20 |
85 |
50 |
|
|
|
|
|
|
|
