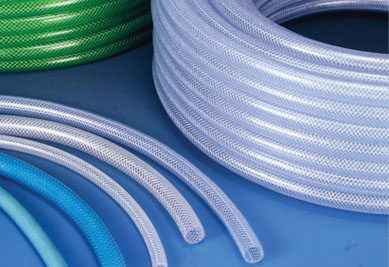

| PVC clear braided hose : CBH |
|
|
|
|
|
|
|
 |
|
| Color |
 |
| Clear, green, blue and other colors available on request |
|
| Applications |
|
Delivery of weak chemical compounds, gases and fluids
Water supply and drainage
Food products delivery without imparting any taste or odor (non toxic available on request) |
|
| Construction |
|
| Clear tubing reinforced with cross weaved polyester yarn |
|
| Features and Benefits |
|
Smooth interior finish provides excellent flow characteristics
Easy handling, lightweight and flexible
Abrasion resistant
Easily flushed and cleaned |
|
|
| Specification : CBH |
 |
Nominal Size
(inch) |
I.D.
(mm) |
O.D.
(mm) |
Pressure (10˚C) |
Standard Length
(m/coil) |
Working
(kg/cm²) |
Bursting
(kg/cm²) |
| 6 |
6 |
10.0 |
10 |
40 |
100 |
| 8 |
8 |
12.0 |
10 |
40 |
100 |
| 9 |
9 |
13.0 |
10 |
40 |
100 |
| 10 |
10 |
14.5 |
10 |
40 |
100 |
| 12 |
12 |
16.5 |
9 |
35 |
100 |
| 13 |
13 |
18.0 |
9 |
35 |
100 |
| 16 |
16 |
21.0 |
7 |
30 |
50 |
| 19 |
19 |
24.0 |
6 |
25 |
50 |
| 25 |
25 |
31.0 |
5 |
20 |
50 |
| 32 |
32 |
40.0 |
4 |
15 |
50 |
| 38 |
38 |
46.0 |
4 |
15 |
50 |
| 50 |
50 |
59.5 |
3 |
10 |
50 |
|
|
|
|
|
|
|
