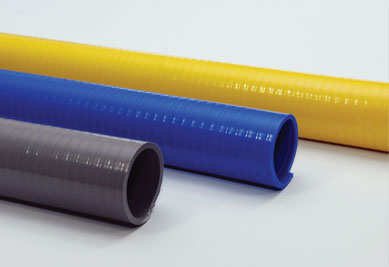

Heavy Duty PVC Flexible Suction Hose : FS-H
Color
Blue, grey, orange and other colors available on request
Applications
Irrigation, suction and delivery of chemical
compounds and fluids
Industrial and construction liquid and material applications
Fisheries and aquatic markets
Wide variety of suction or transfer applications
Construction
Plasticized PVC hose imbedded with helix
reinforcement of anti-shock rigid PVC
Features and Benefits
Resistant to crushing, abrasion and most chemicals
More economical and much lighter than similar rubber hoses
Flexible and easy handling
Features a smooth bore
Smooth inner surface for minimal flow resistance
Specification : FS-H (Heavy duty)
Nominal Size
(inch)
I.D.
(mm)
O.D.
(mm)
Pressure (10˚C) Standard Length
(m/coil)
Tolerable Bending Radius
(mm)
Working
(kg/cm²)
Bursting
(kg/cm²)
3/4 19.0±0.5 24.2±0.5 7.0 18.0 30 60
1 25.0±0.5 30.4±1.0 7.0 18.0 50 70
1 1/4 32.0±0.5 38.2±1.0 7.0 18.0 50 90
1 1/2 38.0±0.5 44.4±1.0 6.0 17.0 50 120
2 50.5±1.0 58.9±1.5 6.0 17.0 50 150
2 1/2 63.5±1.0 73.3±1.5 5.5 16.5 50 200
3 75.5±1.0 85.9±1.5 5.0 16.0 50 230
4 103.5±1.5 114.0±2.0 4.5 15.0 30 350
5 125.0±1.5 139.5±2.0 4.5 14.0 30 500
6 151.0±1.5 167.6±2.0 4.0 12.0 20 700

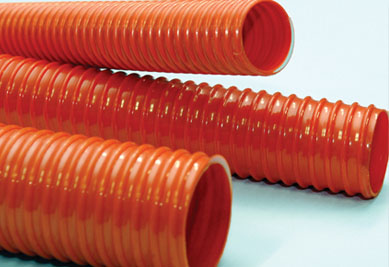

Light Duty PVC Flexible Suction Hose : FS-LW
Color
Orange, blue, grey and other colors available on request
Applications
Agricultural, industrial and construction liquid
and material applications
Fisheries and aquatic markets
Irrigation, suction and delivery of chemical compounds
and fluids
Wide variety of suction or transfer applications
Construction
Plasticized PVC hose imbedded with
helix reinforcement of anti-shock rigid PVC
Features and Benefits
More economical and much lighter than similar rubber hoses
Flexible and easy handling
Features a smooth bore

Light corrugation outside and smooth
inside surface for minimal flow resistance Resistant
to abrasion and most chemicals

Specification : FS-LW (Light duty)
Nominal Size
(inch)
I.D.
(mm)
O.D.
(mm)
Pressure (10˚C) Standard Length
(m/coil)
Tolerable Bending Radius
(mm)
Working
(kg/cm²)
Bursting
(kg/cm²)
3/4 19.0±0.5 24.2±0.5 4.0 15 30 40
1 25.0±0.5 30.4±1.0 4.0 15 50 45
1 1/4 32.0±0.5 38.2±1.0 4.0 15 50 50
1 1/2 38.0±0.5 44.4±1.0 3.5 13 50 55
2 50.5±1.0 58.9±1.5 3.5 13 50 110
2 1/2 63.5±1.0 73.3±1.5 2.5 12 50 180
3 75.5±1.0 85.9±1.5 2.5 12 50 220
4 103.5±1.5 114.0±2.0 2.5 10 30 240
5 125.0±1.5 139.5±2.0 2.5 10 30 400
6 151.0±1.5 167.6±2.0 2.0 8 20 450

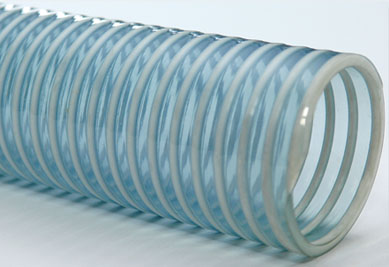

Heavy Duty Clear PVC Flexible Suction Hose : CFS-H
Color
Transparent tube with PVC helix available in different colors
Applications
Agricultural, industrial and construction liquid
and material applications
Irrigation, suction and delivery of chemical
compounds and fluids
Fisheries and aquatic markets
Wide variety of suction or transfer applications
Construction
Plasticized PVC hose imbedded with
helix reinforcement of anti-shock rigid PVC
Features and Benefits
Resistant to crushing, abrasion and most chemicals
More economical and much lighter than similar rubber hoses
Flexible and easy handling
Features a smooth bore
Smooth inner surface for minimal flow resistance
Specification : CFS-H (Heavy duty)
Nominal Size
(inch)
I.D.
(mm)
O.D.
(mm)
Pressure (10˚C) Standard Length
(m/coil)
Tolerable Bending Radius
(mm)
Working
(kg/cm²)
Bursting
(kg/cm²)
3/4 19.0±0.5 24.2±0.5 7.0 18.0 30 60
1 25.0±0.5 30.4±1.0 7.0 18.0 50 70
1 1/4 32.0±0.5 38.2±1.0 7.0 18.0 50 90
1 1/2 38.0±0.5 44.4±1.0 6.0 17.0 50 120
2 50.5±1.0 58.9±1.5 6.0 17.0 50 150
2 1/2 63.5±1.0 73.3±1.5 5.5 16.5 50 200
3 75.5±1.0 85.9±1.5 5.0 16.0 50 230
4 101.5±1.5 113.5±2.0 4.5 15.0 30 350
5 125.0±1.5 139.5±2.0 4.5 14.0 30 500
6 151.0±1.5 167.6±2.0 4.0 12.0 20 700

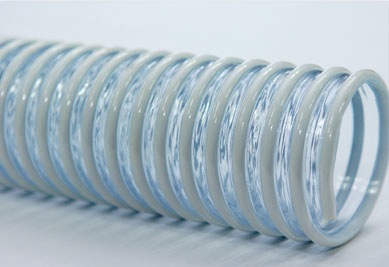

Light Duty Clear PVC Flexible Suction Hose : CFS-LW
Color
Transparent tube with PVC helix available in different colors
Applications
Agricultural, industrial and construction liquid
and material applications
Irrigation, suction and delivery of chemical
compounds and fluids
Fisheries and aquatic markets
Wide variety of suction or transfer applications
Construction
Plasticized PVC hose imbedded with helix reinforcement of anti-shock rigid PVC
Features and Benefits
More economical and much lighter than similar rubber hoses
Flexible and easy handling
Features a smooth bore
Light corrugation outside and smooth
inside surface for minimal flow resistance
Resistant to abrasion and most chemicals
Specification: CFS-LW (Light duty)
Nominal Size
(inch)
I.D.
(mm)
O.D.
(mm)
Pressure (10˚C) Standard Length
(m/coil)
Tolerable Bending Radius
(mm)
Working
(kg/cm²)
Bursting
(kg/cm²)
3/4 19.0±0.5 24.2±0.5 4.0 15 30 40
1 25.0±0.5 30.4±1.0 4.0 15 50 45
1 1/4 32.0±0.5 38.2±1.0 4.0 15 50 50
1 1/2 38.0±0.5 44.4±1.0 3.5 13 50 55
2 50.5±1.0 58.9±1.5 3.5 13 50 110
2 1/2 63.5±1.0 73.3±1.5 2.5 12 50 180
3 75.5±1.0 85.9±1.5 2.5 12 50 220
4 101.5±1.5 113.5±2.0 2.5 10 30 240
5 125.0±1.5 139.5±2.0 2.5 10 30 400
6 151.0±1.5 167.6±2.0 2.0 8 20 450
